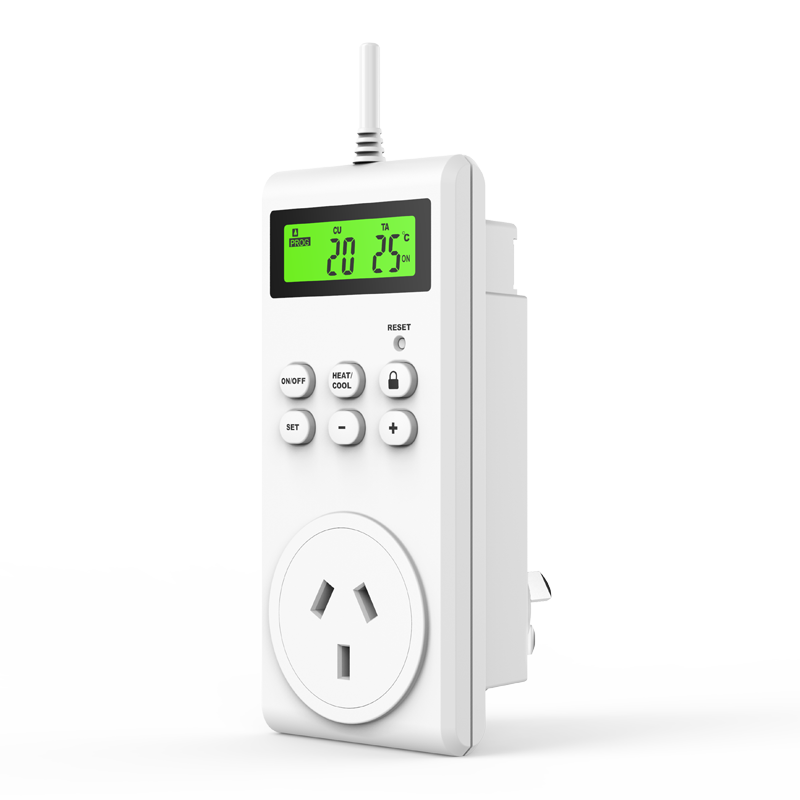

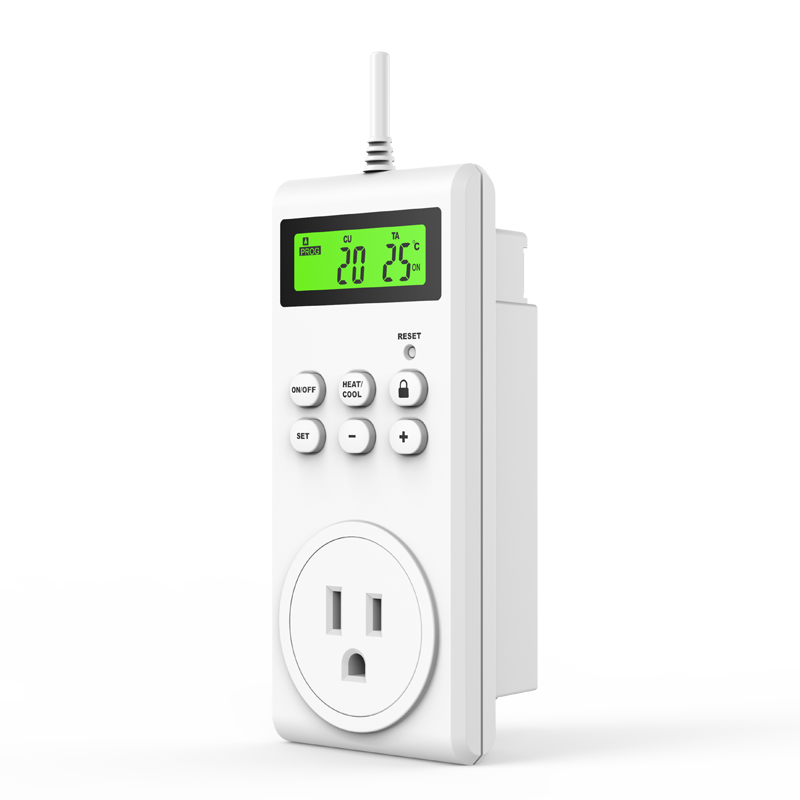

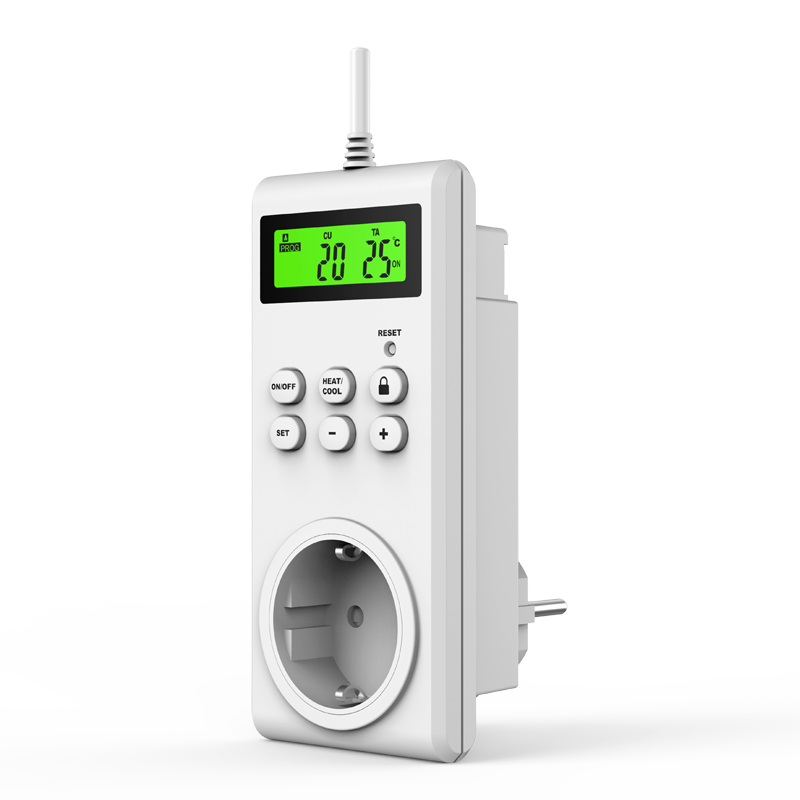

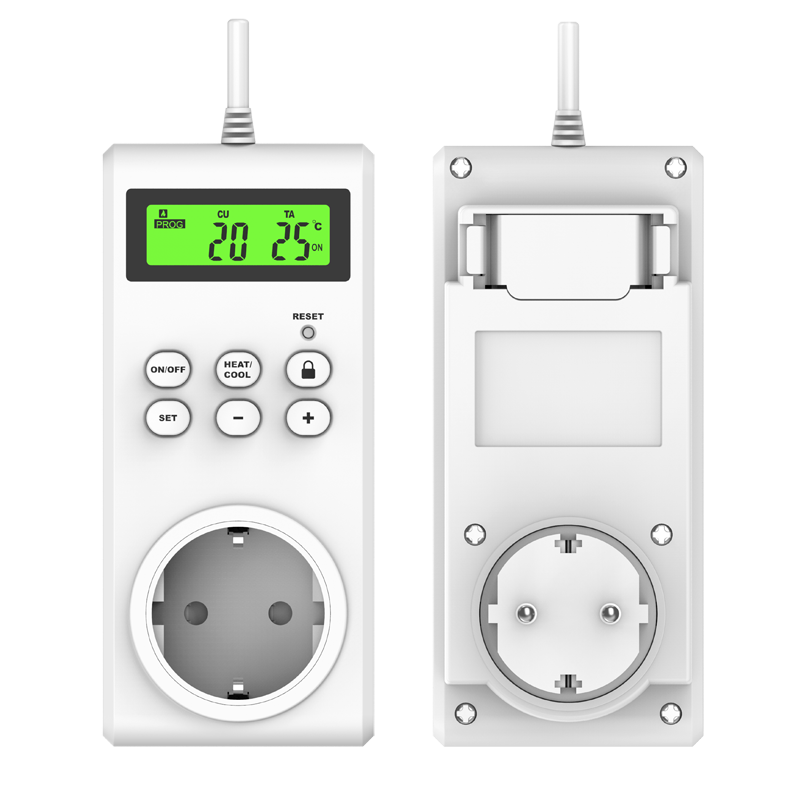

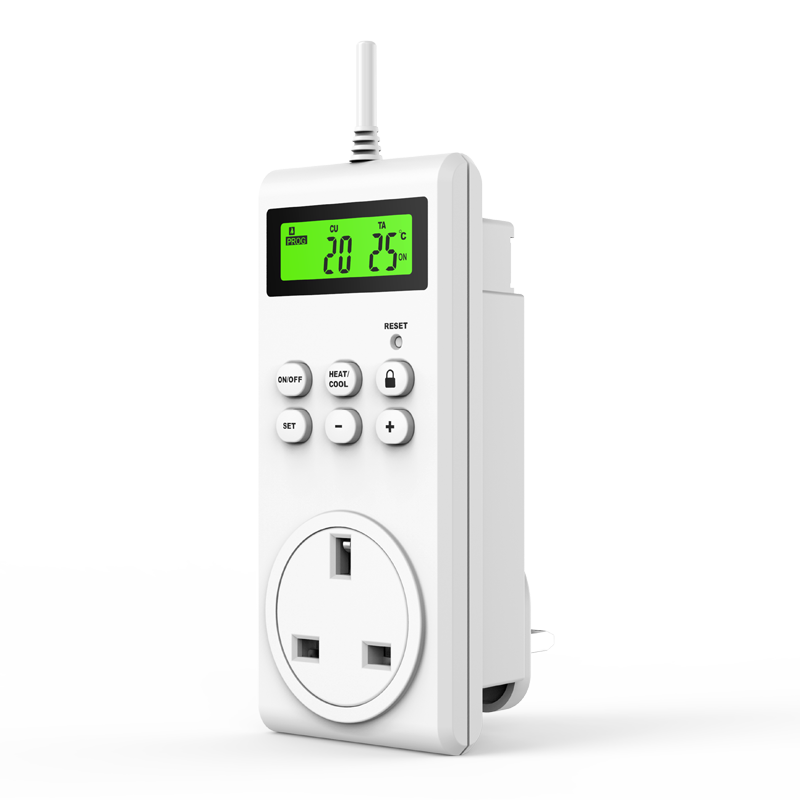

Plug in Thermostat-WTS3100

WTS3000 Plug in thermostat is used to control heating or cooling devices to maintain a stable and comfortable room temperature.

It has two working mode, standard heating mode, and standard cooling mode, and we can also calibrate current room temperature and set temperature hysteresis.

We design it as most simple and convenient, you only need to preset a TARGET temperature,then it will automatically turn on or turn off your home electric heating/cooling devices to maintain a stable room temperature,very easy to operate and without too much installation,plug and play type.

Selling Points

1. Plug and play, no ned installation

2. LCD with green backlight, easily operate in dark environment

3. Standard heating mode, Standard cooling mode

4. °C/°F switchable

5. RESET+SET button: Easily ｄｅｌｅｔｅ all the settings, back to factory default settings

6. Bak-up 2pcs button cell batteries, easily for setting

7. Children lock

8. New design

Super simple design:

This thermostat is design very simple, no need too much setting, very convenient for child and old people to control your home temperature in home,just set your target temperature.

Temperature calibration/Temperature Hysteresis:

You can easily calibrate this room temperature when you think the temperature is not very accurate,

go into setting for calibration and temperature hysteresis.

Green Backlight LCD:

LCD screen with green backlight displays current temperature, target temperature, clock/heat programs, providing clear view even in dark environment.

Reset Function

Easily ｄｅｌｅｔｅ all setting and back to factory setting by pressing SET button and RESET button

Children Lock Function:

Hold and press LOCK button for 2 seconds to lock this devices.

Heating/Cooling Mode Settable:

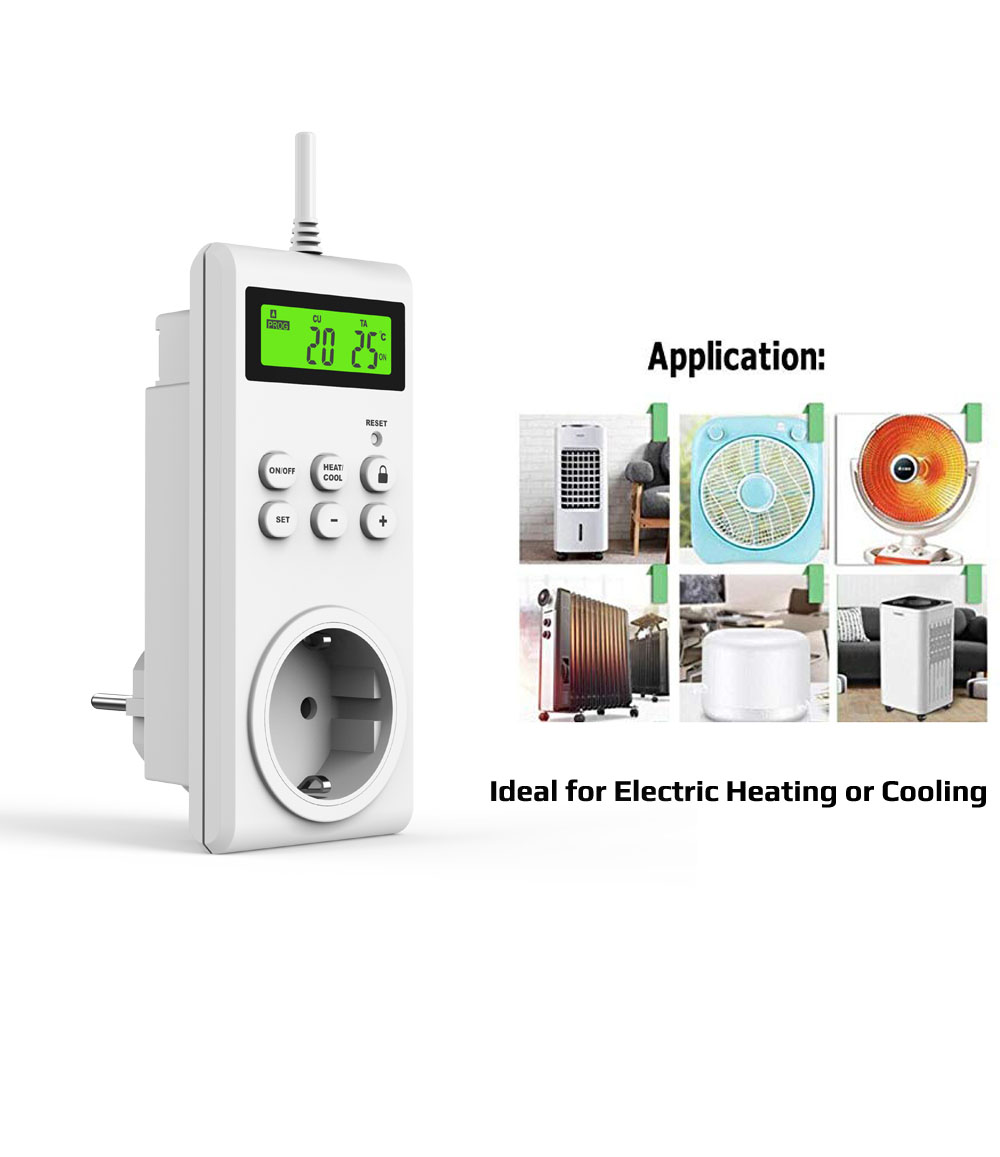

Used to control both heating or cooling devices.

Specification

1.Color: White

2. Material: ABS+PC+Metal

3. Max Ratings:

   230VAC/16A/50Hz/3680W(EU)

   230VAC/13A/50Hz/3250W(UK)

   120VAC/15A/60Hz/1800W(US)

4. Temp.Range:0-60°C/32~140°F

5. Heating/Cooling program

6. Temperature accuracy:± 1 °C/±2 °F

7. Current Temp. Resolution:1 °C/ °F

8. TARGET Temp. Resolution:1 °C/2 °F

9. Power supply:3V(2pcs* LR44 1.5V),batteries is included in shipping

10.Product dimension: L*W*H=136x61x68mm

11.Net Weight:156g

Packages

1 X Plug in thermostat with temperature sensor

1 X Gift Box

1 X User Manual(English version)

Packing

Sales Box:L*W*H=17 x 6.5 x9.0cm

Carton Size:L*W*H=52*37*30 CM

SETS/CTN: 45SETS/CTN

N.W.: 7.0 KGS

G.W.: 8.96 KGS

V.W.: 11.4KGS
