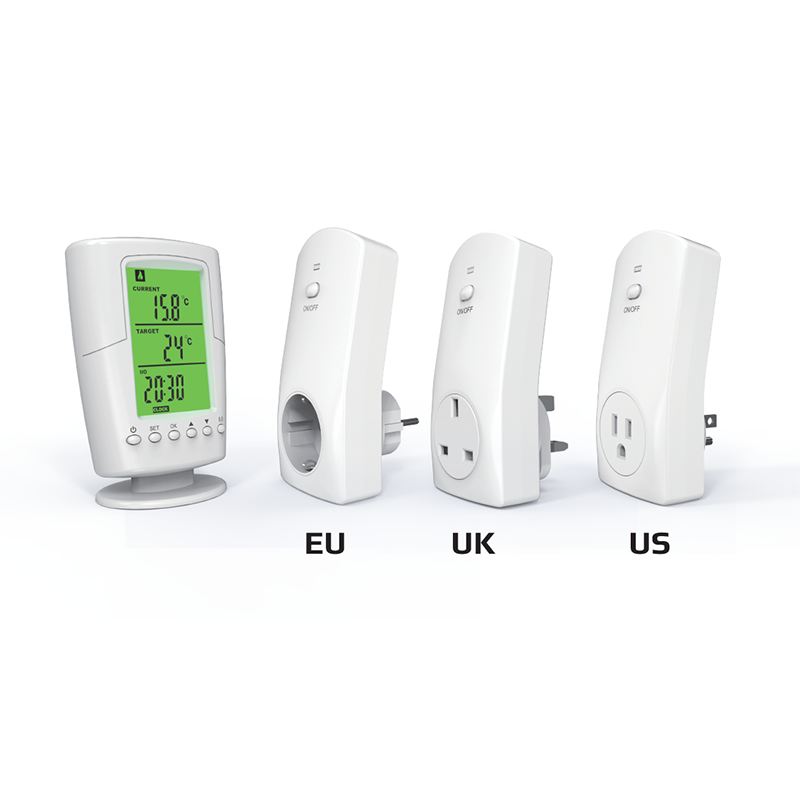

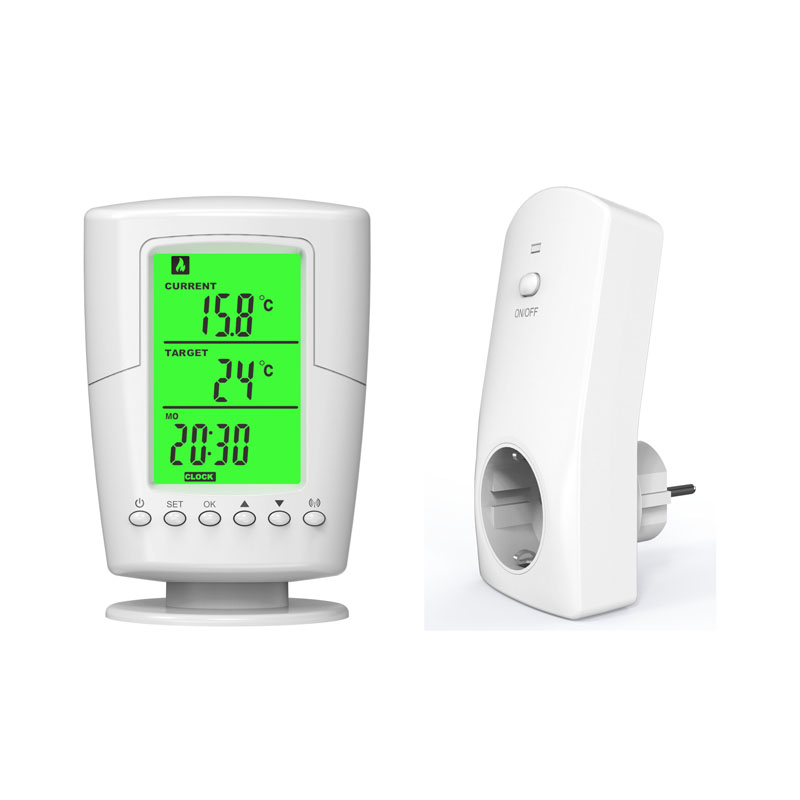

Wireless Thermostat-WTS2000H

WTS2000H Programmable Heating thermostat,it is mainly used to control heating panel.

Comperared with WTS2000, it is new added with Temperature calibration, Temperature Hysteresis, Open Window functions.

It will be more engery saving for heating devices.

Introduction

1. Programmable version,set different target temp. in different time range

2. Deactivate programs,shut down all preset programs in two steps

3. Built in temperature sensor,control heating  from anywhere

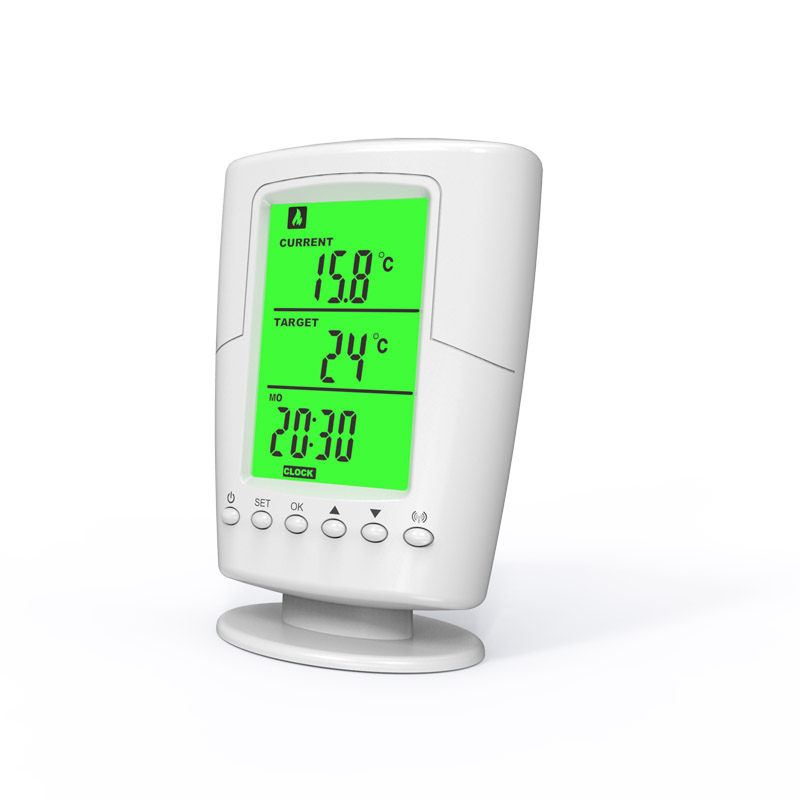

4. Super big LCD with green backlight,easily operate even in dark environment

5. Temperature Calibration: -3~+3°C

6. Temperature Hysteresis: 1~5°C

7. Open Window function

8. Multi-channels,easily learn code and built-up control system without interruption

9. °C/ °F switchable,easily switch between °C/ °F

10. Long standby time,support 2pcs*1.5V AA batteries,low standby current

11. Children lock,automatically lock this device if no operation for 10 minutes

12. New design,Desktop/Wall mounted/Hold in hand

Specification:

Remote thermostat control:

Temperature range: 0~60 °C/32~140 °F

Temperature accuracy: ± 1 °C/±1.8 °F

Current Temp. Resolution: 0.1 °C/°F

TARGET Temp. Resolution: 1 °C/°F

Power supply: 3V(2pcs* AA 1.5V)

Max.range: 20 meters in open land

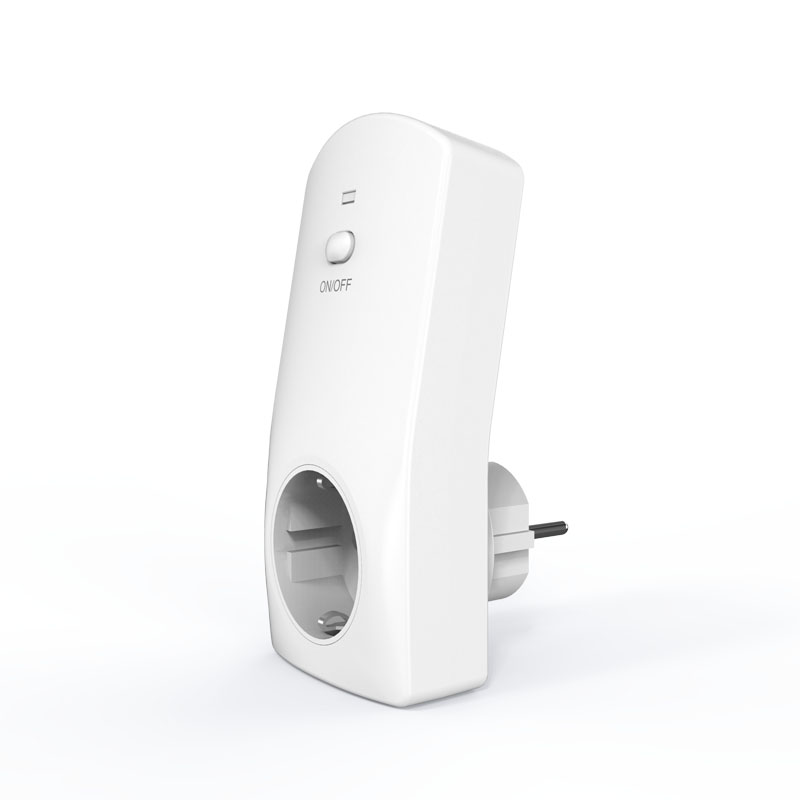

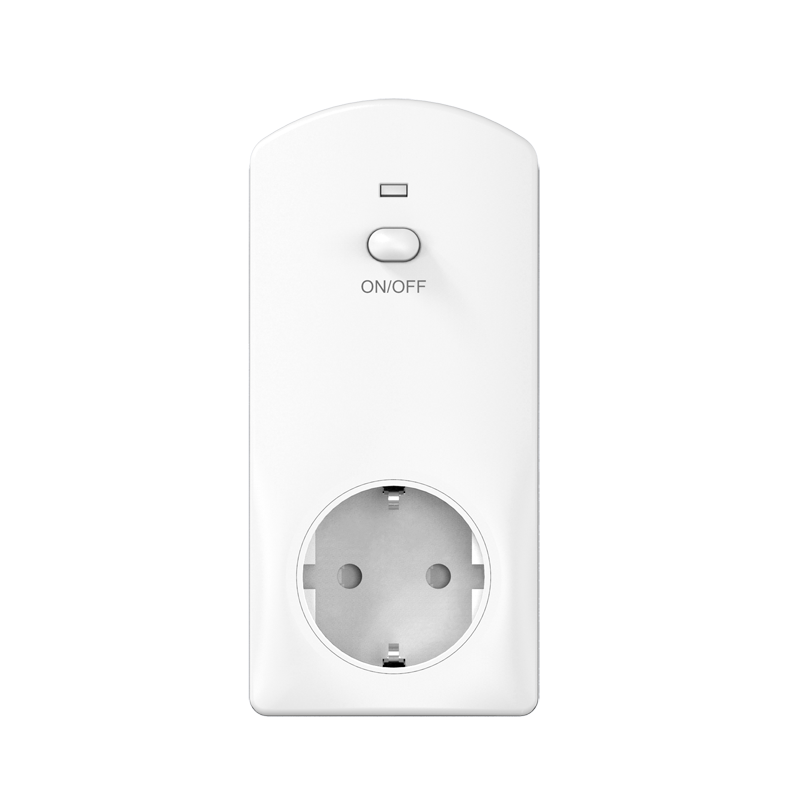

Plug in Socket:

- Connection: 230 V ~ 50 Hz

- Transmission frequency: 433.92 MHz

- Maximum Rating: 3680W,16 A

- Maximum range: 40 meters in open area
